Android SDK Guide

Alt text

Install ATH SDK

Install the SDK Using Gradle

implementation "com.aisenz:ath:1.0.4"

You need to add the maven repository to your build.gradle or settings.gradle file

repositories {
    google()
    mavenCentral()
    jcenter()
    maven {url "https://mvn.senzflow.io/repository/ath/" }
}

Update Android Manifest

    <uses-permission android:name="android.permission.BLUETOOTH_SCAN"/>
    <uses-permission android:name="android.permission.BLUETOOTH_CONNECT" />

Classes and Interfaces

BleManager

    fun init(context: Context)
    fun getDeviceList(): List<BleDevice>
    fun getDevice(mac: String): BleDevice?

BleDevice

    fun connect(callback: ConnectCallback)
    fun disconnect()
    fun setListener(listener: BleDeviceListener)
    fun removeListener()
    fun sendCommand(cmd: Command, callback: CommandCallback)
    fun getConnectionState(): BleConnectionState

BleDeviceListener

    fun onDeviceStateChange(state: BleDeviceState)
    fun onDataComing(data:Data)

BleDeviceState

enum class BleDeviceState(private val mState: Int) {
    CONNECTED(1),
    CONNECTING(2),
    DISCONNECTED(0),
    DISCONNECTING(3)
}

Command

class Command(val type: String, val parameters: Map<String, Any>)

Supported Devices

Data

class Data(val type: String, val values: Map<String, Any>)

Supported Devices

ConnectCallback

interface ConnectCallback {
    fun onConenctFailed(errorCode: Int, detail: String)
    fun onConnectSuccess()
    companion object {
        //error code
        val CONNECT_TIMEOUT = -1
        val CONNECTION_LIMIT_EXCEEDED = -2
    }
}

CommandCallback

interface CommandCallback {
    fun onCommandFailed(errorCode: Int, detail: String)
    fun onCommandSuccess()
    companion object {
        //error code
        val UNKNOWN_COMMAND = -1
        val PARAMETER_INVALID = -2
        val DEVICE_DISCONNECT = -3
    }
}

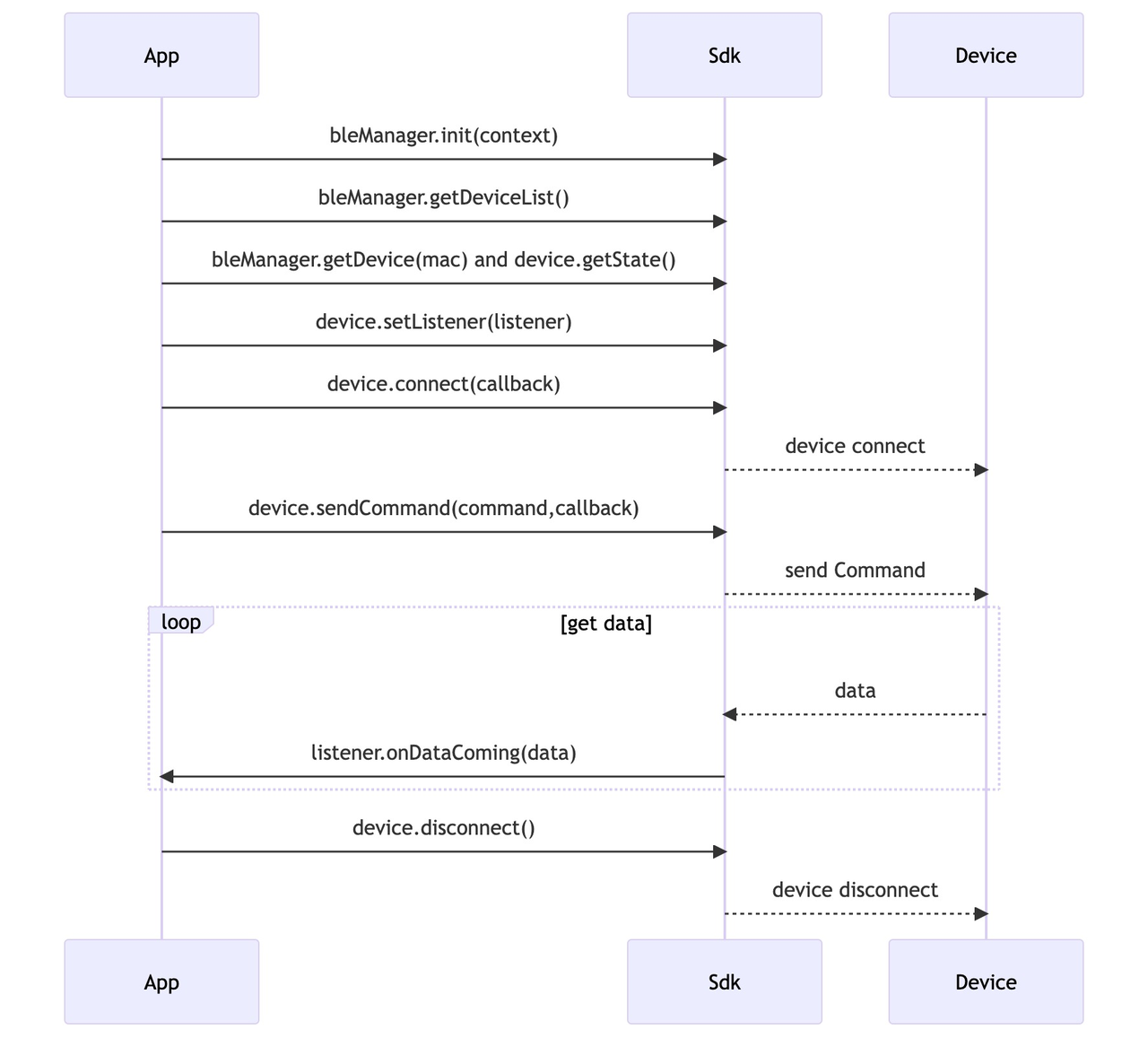

Quick Start

Alt text

Initialize The BleManager

To manage Bluetooth devices, you need to initialize BleManager.

import android.app.Application

class DemoApplication : Application() {
    override fun onCreate() {
        super.onCreate()
        BleManager.instance.init(this);
    }
}

Get Device List

 val bleDeviceList = BleManager.instance.getDeviceList()

Get Device and State

 val bleDevice = BleManager.instance.getDevice("00:00:00:00:00:00")
 val deviceState = bleDevice.getState()

Set Listener For Device

When you get the BleDevice, You can set up a listener to handle the device connection status and receive notification data from the device.

        bleDevice.setListener(object: BleDeviceListener {
            override fun onDeviceStateChange(state: BleDeviceState){

            }
            override fun onDataComing(it: Data){
              if(it.type=="RealTime")
              {
                 //Get data and convert it to the specified data type
                  val bloodOxygen= (it.values.get("blood_oxygen") as Int
                  val heartRate= (it.values.get("heart_rate") as Int
              }
            }
        })

Connect Device

After obtaining the BleDevice, you can start the device. The device will establish a connection and set the monitoring for notification.

    bleDevice.connect(object:ConnectCallback{
        override fun onConenctFailed(errorCode: Int, detail: String) {
            // handle error here
            if(errorCode==ConnectCallback.CONNECT_TIMEOUT){
            }
        }
        override fun onConnectSuccess() {
        }
    })

Send Command To Device

If you want to get data from a Bluetooth device, you can send the specified command.

    //start get realtime data，
    //you can handle realtime data from BleDeviceListener.onDataComing
    bleDevice.sendCommand(Command("startMeasure", mapOf()),
     object:CommandCallback{
        override fun onCommandFailed(errorCode: Int, detail: String) {
           // handle error here
            if(errorCode==CommandCallback.UNKNOWN_COMMAND){
            }
        }
        override fun onCommandSuccess() {
        }
    })

    //stop get realtime data
    bleDevice.sendCommand(Command("stopMeasure",  mapOf()),
     object:CommandCallback{
        override fun onCommandFailed(errorCode: Int, detail: String) {
                  // handle error here
            if(errorCode==CommandCallback.PARAMETER_INVALID){

            }
        }
        override fun onCommandSuccess() {
        }
    })
