Architecture

Alt text

Topic Overview

Topic Category	Topic	Content	Publisher	Subscriber
Device Status Report	iot/{gw}/{device}/status	{ "status":"CONNECTED", "time":1524448722}	Gateway	Platform
Device Data Report	iot/{gw}/{device}/data	{ "type":"MeasureData", "values":{ "blood_oxygen":96, "heart_rate":64 }, "time":1524448722}	Gateway	Platform
Device Command	iot/{gw}/{device}/command	{ "type":"StartMeasure", "args":{ } }	Platform	Gateway
Device Command Response	iot/{gw}/{device}/command_reply	{ "type":"StartMeasure", "result":{ "status":"ok", "detail":""}}	Gateway	Platform
Server Ping to Gateway	iot/{gw}/connect/ping	{}	Platform	Gateway
Gateway Ping Response to Server	iot/{gw}/connect/pingresp	{}	Gateway	Platform
Gateway Will Topic	iot/{gw}/connect/will	{}	Broker	Platform
Gateway Devices Topic When Connected	iot/{gw}/sub_devices/dev_list	There may be two types of messages： 1. Gateway Side Err msg: { "err_msg": "xxx"} 2. Devices List Of Gateways: [{ "name": "Pulse Oximeter Watch 1", "deveui": "2CAB33CC8FFA", "product_name": "Prince-100G", "product_category": "watch"}, { "name": "Blood Pressure Monitor\t1", "deveui": "D1F001013720", "product_name": "U80M", "product_category": "blood_pressure"}]	Gateway	Platform

Flow Chart

Device Status Report

Alt text

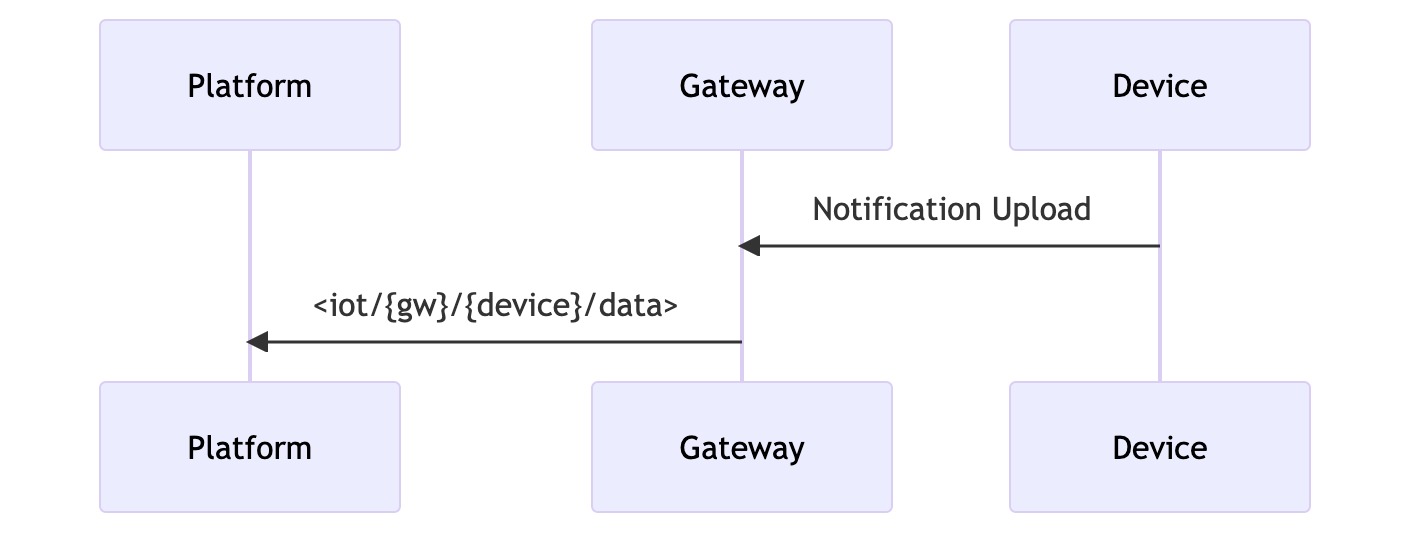

Device Data Report

Alt text

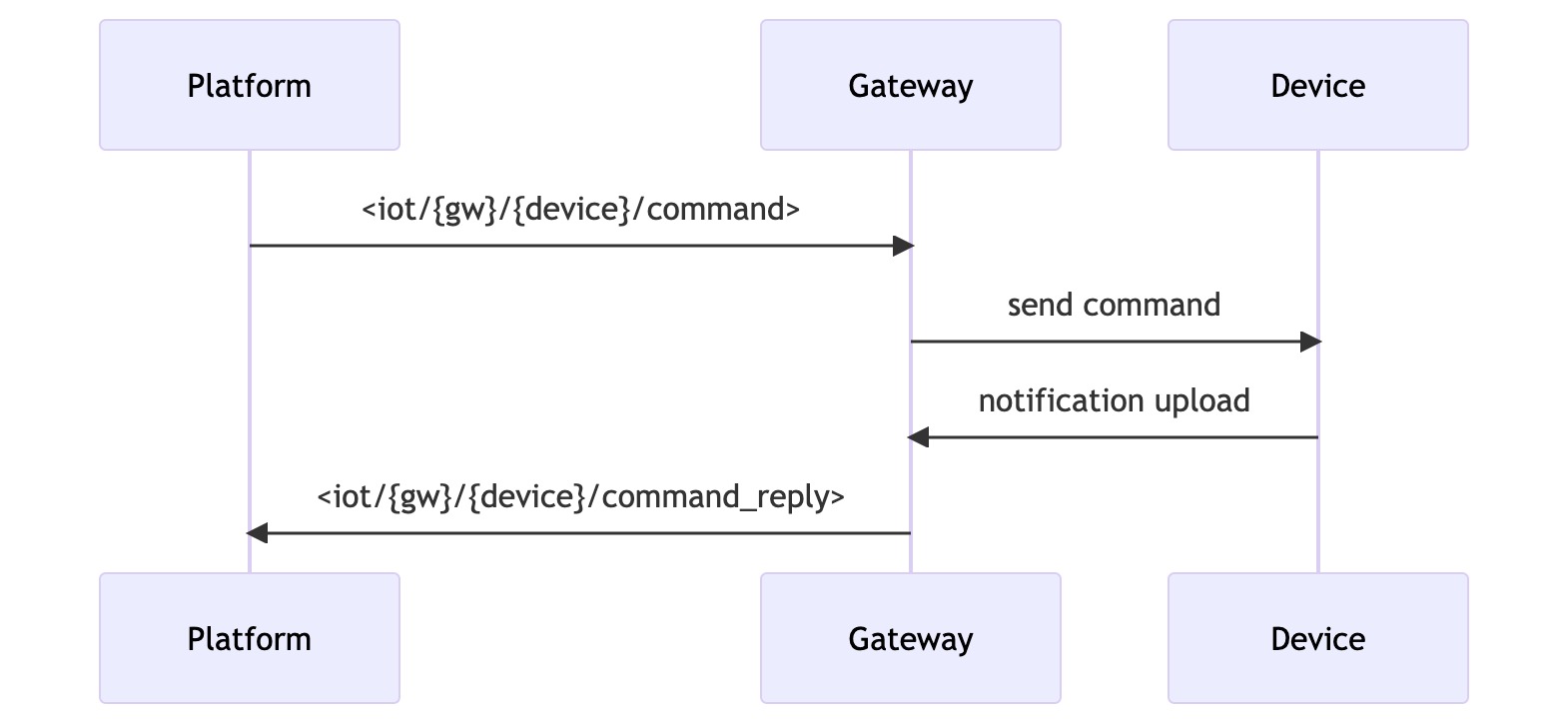

Device Command

Alt text

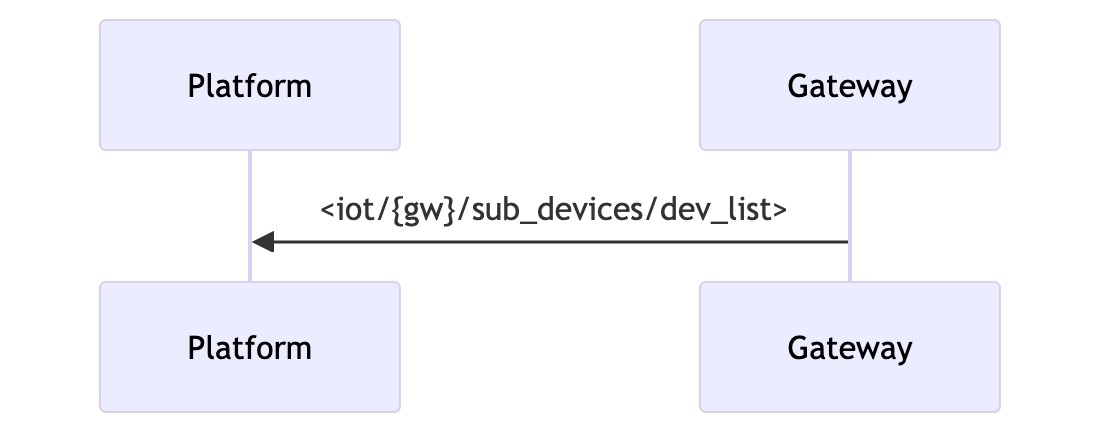

Gateway Devices Topic When Connected

Alt text

Topic Details

Device Status Report

Field	Field Description	Type	Optional	Example
status	Device status, CONNECTED or DISCONNECTED	string	Required	CONNECTED
time	Timestamp (seconds since the Unix epoch)	number	Required	1524448722

Device Data Report

Field	Field Description	Type	Optional	Example
device.mac	Device Mac	string	Required	2cab33cc8ffa
device.make	Manufacturer	string	Required	ATH
device.model	Product name	string	Required	Prince-100G
measure.type	Type of measure data	string	Required	pulseox
measure.time	UTC represented in ISO8601 format using the timezone representation +00:00	string	Required	2023-11-23T11:59:05+00:00
measure.data	Measure data of device	JSON	Required	{"heartRate":{"value":69,"unit":"bpm"},"spo2":{"value":98,"unit":"%"}}

Complete example:

{
     "device": {
          "mac": "2cab33cc8ffa",
          "make": "ATH",
          "model": "Prince-100G"
     },
     "measure": {
          "type": "pulseox",
          "time": "2023-11-23T11:59:05+00:00",
          "data": {
               "heartRate": {
                    "value": 69,
                    "unit": "bpm"
               },
               "spo2": {
                    "value": 98,
                    "unit": "%"
               }
          }
     }
}

Measure Data supported by the device refers to Supported Devices

Device Command

Field	Field Description	Type	Optional	Example
type	Type of command	string	Required	StartMeasure
args	Command args	JSON	Required	{}

Commands supported by the device refers to Supported Devices

Device Command Response

Field	Field Description	Type	Optional	Example
type	Type of command	string	Required	StartMeasure
result	Result of command	JSON	Required
result.status	command result statusOk or Fail	string		ok
result.detail	command result detail	string	Optional

Gateway Devices Topic When Connected

Gateway Side Err msg

Field	Field Description	Type	Optional	Example
err_msg	Gateway side error msg, when gateway get value from nvs	string	Required	{\"err_msg\":\"xxx\"}

Devices List Of Gateways

Field	Field Description	Type	Optional	Example
name	Device name	string	Required	Pulse Oximeter Watch 1
deveui	Device mac	String	Required	2CAB33CC8FFA
product_name	Product name	String	Required	Prince-100G
product_category	Product category	String	Required	watch
